Name: Challenger SRM10 Short-Rise Scissor Lift 10000 lb 22 Inch Rise
Brand: Challenger Lifts
SKU: SRM10
Price: 6134.81 EUR
Availability: InStock

Challenger SRM10 Short-Rise Scissor Lift 10000 lb 22 Inch Rise

€6.134,81

Configuration

Standard (115V)

220V

Movable Power Unit (115V)

Clearance Sale – Offer valid until July 20

In stock, ready to ship
Inventory on the way

[{"id":53324290359562,"title":"Standard (115V)","option1":"Standard (115V)","option2":null,"option3":null,"sku":"SRM10","requires_shipping":true,"taxable":false,"featured_image":null,"available":true,"name":"Challenger SRM10 Short-Rise Scissor Lift 10000 lb 22 Inch Rise - Standard (115V)","public_title":"Standard (115V)","options":["Standard (115V)"],"price":613481,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":53324290392330,"title":"220V","option1":"220V","option2":null,"option3":null,"sku":"SRM10-220","requires_shipping":true,"taxable":false,"featured_image":null,"available":true,"name":"Challenger SRM10 Short-Rise Scissor Lift 10000 lb 22 Inch Rise - 220V","public_title":"220V","options":["220V"],"price":635860,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":53324290425098,"title":"Movable Power Unit (115V)","option1":"Movable Power Unit (115V)","option2":null,"option3":null,"sku":"SRM10-MPU","requires_shipping":true,"taxable":false,"featured_image":null,"available":true,"name":"Challenger SRM10 Short-Rise Scissor Lift 10000 lb 22 Inch Rise - Movable Power Unit (115V)","public_title":"Movable Power Unit (115V)","options":["Movable Power Unit (115V)"],"price":658765,"weight":0,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Challenger SRM10 Short-Rise Scissor Lift 10000 lb 22 Inch Rise

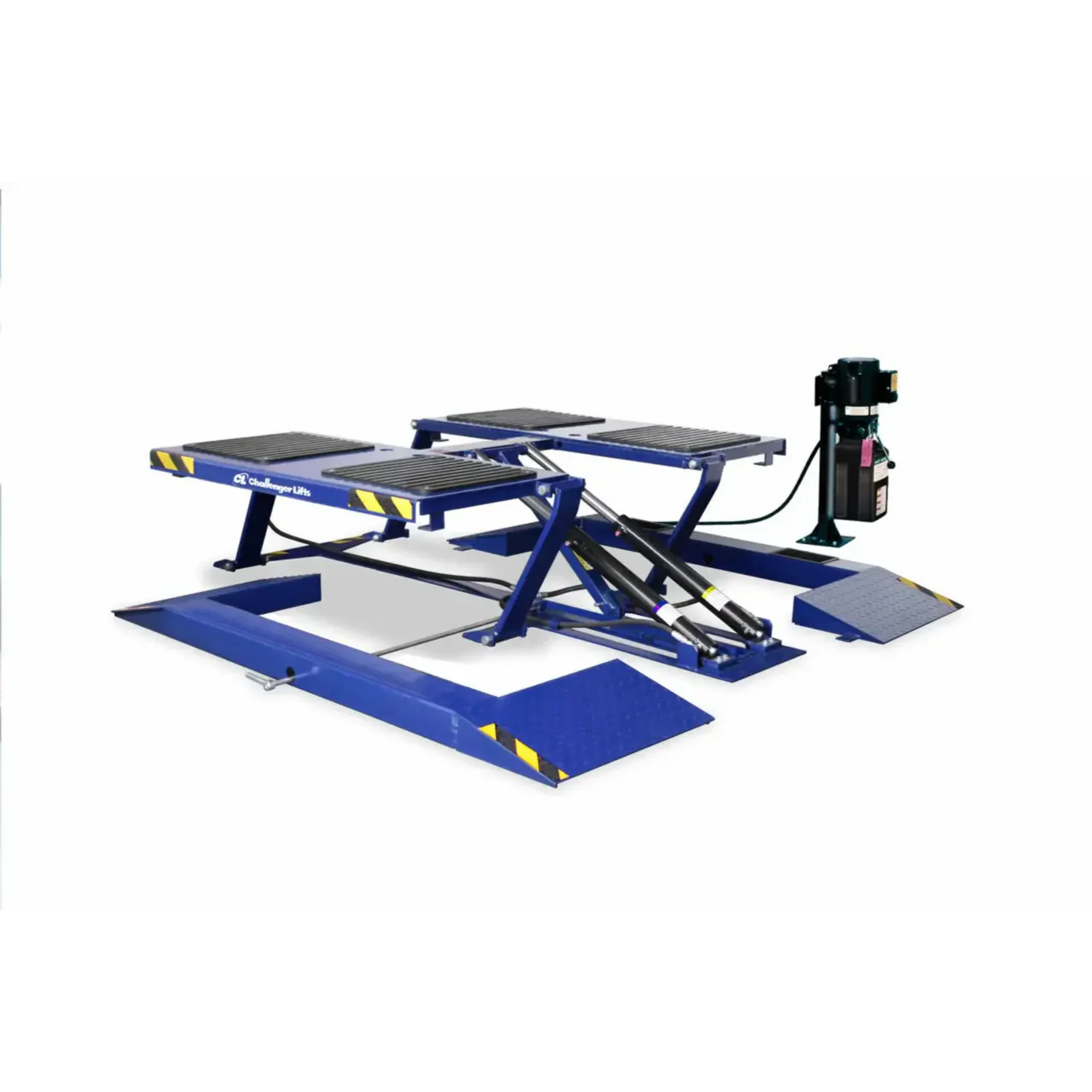

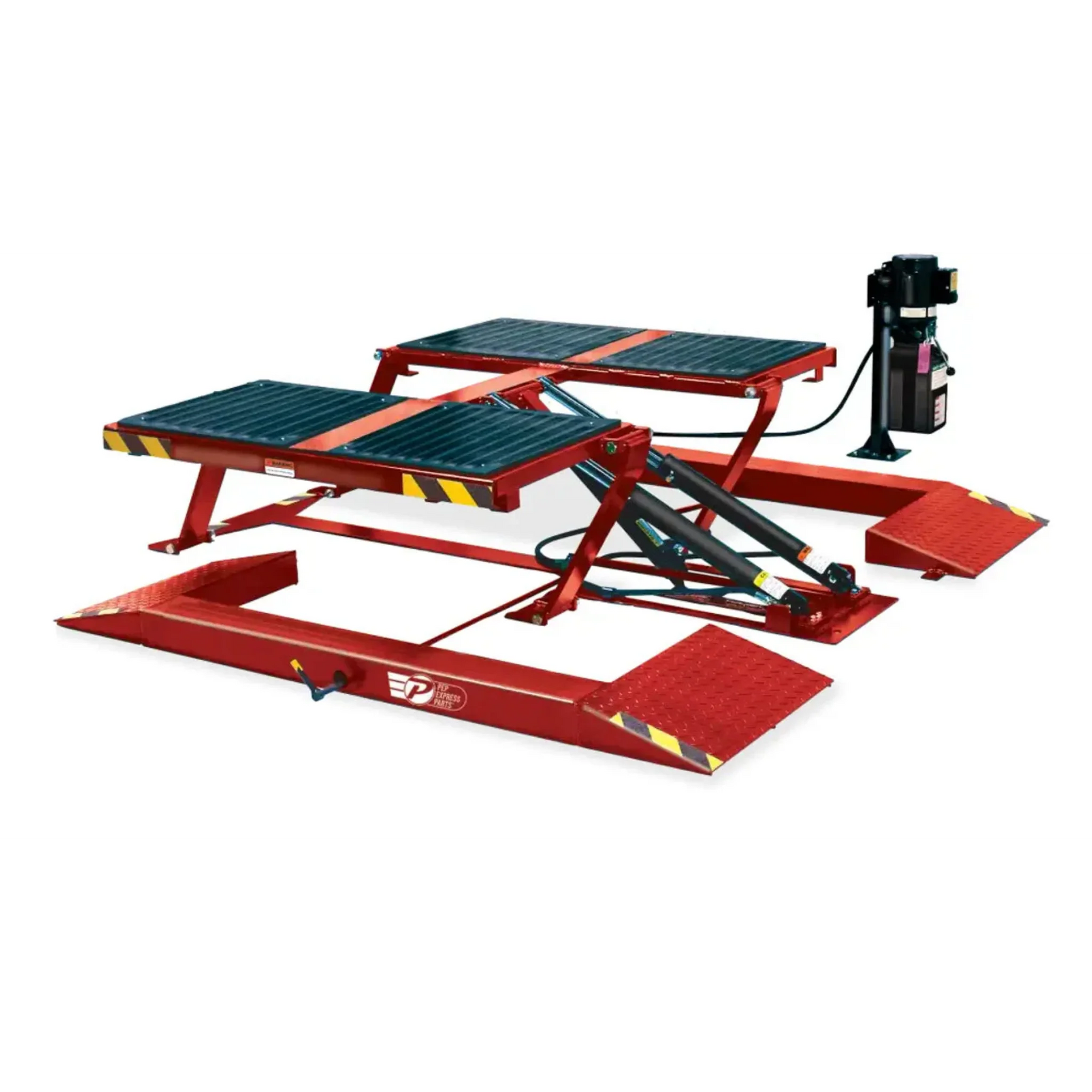

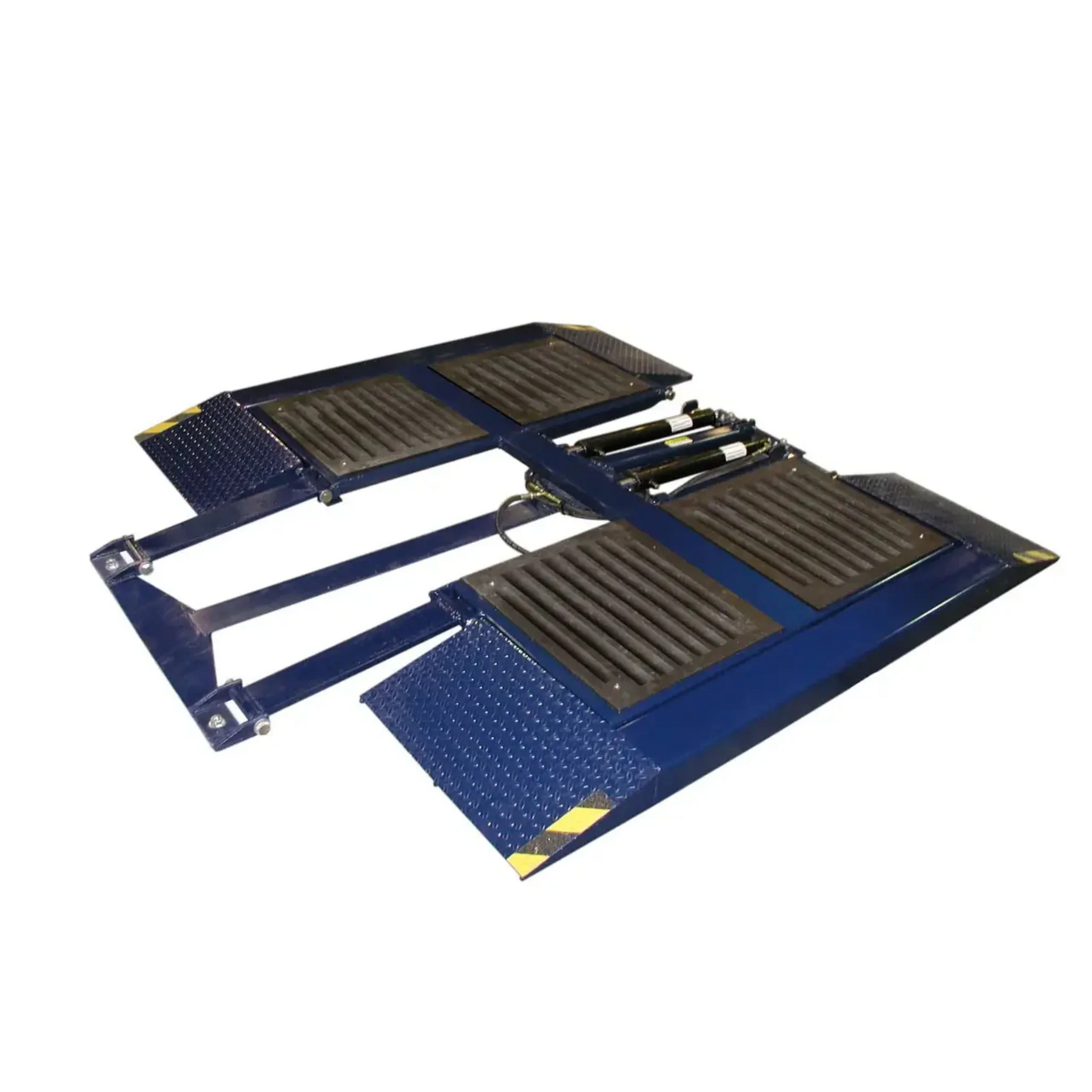

The Challenger SRM10 is a heavy-duty short-rise scissor lift with a 10,000 lb lifting capacity, engineered for brake, tire, and undercarriage service on trucks, SUVs, vans, and full-size vehicles. The American-made lift delivers a 22" raised height in a compact footprint, with three mechanical locking positions at 13.75", 18.25", and 21.25" for versatile working heights. The hydraulic system operates at 1,720 PSI, and a low 4.25" lowered height allows easy drive-on positioning. It handles vehicles such as the Ford F-250 and Chevy Silverado 2500.

The SRM10 can be surface mounted for quick setup or flush mounted for a seamless drive-over installation; flush-mount configuration provides 17.75" rise height with lock positions at 9.5", 14.125", and 17". Standard two-position spotting blocks offer low (4.75") and high (6.75") adapter positions to reach lift points across varying frame heights.

It runs on standard 115V single-phase power (230V optional), requiring no special electrical service. Finished in durable black powder coat, the SRM10 is ALI certified and backed by Challenger's comprehensive warranty.

⚠ California Proposition 65 Warning

WARNING: this product can expose you to chemicals including styrene and vinyl chloride, which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit www.p65warnings.ca.gov .

Features

10,000 lb lifting capacity for trucks, SUVs, vans, and full-size vehicles
ALI certified
American-made short-rise scissor design
22" raised height (surface mount) with three lock positions at 13.75", 18.25", and 21.25"
Flush-mount option: 17.75" rise with lock positions at 9.5", 14.125", and 17"
Surface mount or flush mount installation
Hydraulic system operates at 1,720 PSI
Low 4.25" lowered height for easy drive-on positioning
Two-position spotting blocks: low (4.75") and high (6.75") adapter positions
Reaches lift points across varying frame heights and undercarriage clearances
Standard 115V single-phase power (230V optional), no special electrical required
Durable black powder coat finish

Specifications

CAPACITY
Lifting Capacity	10,000 lbs
Hydraulic Pressure at Capacity	1,720 PSI
ALI/ETL Certified	Yes
HEIGHTS (SURFACE MOUNT)
Raised Height	22"
Lowered Height	4.25"
Locking Bar Heights	13.75", 18.25", 21.25"
Low Adapter Position	4.75"
High Adapter Position	6.75"
HEIGHTS (FLUSH MOUNT)
Raised Height	17.75"
Locking Bar Heights	9.5", 14.125", 17"
Low Adapter Position	4.75"
High Adapter Position	6.75"
DIMENSIONS (SURFACE MOUNT)
Overall Width	87.5" (85" + 2.5" handle)
Overall Length	92.875"
Outside Width of Platforms	72"
Width Between Platforms	23"
Platform Overall Length	50"
Ramp and Platform Overall Length	82.5"
Rearward Movement	13.25"
DIMENSIONS (FLUSH MOUNT)
Overall Width	73.25"
Overall Length	85.5"
Outside Width of Platforms	72"
Width Between Platforms	23"
Platform Overall Length	50"
Rearward Movement	13.25"
ELECTRICAL
Motor	1 HP
Standard Voltage	115V, 60Hz, 1Ph
Optional Voltage	230V, 50/60Hz
Circuit Requirements	20-amp circuit breaker or time delay fuse
ADDITIONAL
Color	Black
Operating Temperature Range	41-104°F (5-40°C)
Installation Type	Indoor Only

What's Included

Complete SRM10 lift assembly with base, platforms, and scissor mechanism
Drive-on ramps (surface mount configuration)
1 HP power unit with hydraulic reservoir
Power unit stand
22' hydraulic hose with fittings
Lock release mechanism with handle
Two-position spotting blocks (4 sets)
Rubber lift pads
Anchor bolts and mounting hardware
Safety decals and warning placards
Installation, operation, and maintenance manual
Literature pack with ALI safety materials
